For my 2s battery that i made in previous post. How To Make 2S Battery . For that battery i neeeded a charger to charge it so i order balance charger from Banggood while it is on its way, I needed an alternative way to charger my battery.
for that i decided to make charger for it. First i was thinking of how i am going to make it. I was worried about that i will be needing transformer, voltage controler, resistor ,diode, IC and many more electronics component and it will cost me alot for i have order already a charger so i wanted it to be cheap and simple to make so that i donot have to spend lot of time in it, because i will not be using it as soon as i recived my balance charger. But i have to charger my battery as well.Every day I was thinking about this project and After 1 to 2 days when i was cleaning my lab, I saw an old mobile charger and there i get an idea to make this one as my balance charger .
for that i decided to make charger for it. First i was thinking of how i am going to make it. I was worried about that i will be needing transformer, voltage controler, resistor ,diode, IC and many more electronics component and it will cost me alot for i have order already a charger so i wanted it to be cheap and simple to make so that i donot have to spend lot of time in it, because i will not be using it as soon as i recived my balance charger. But i have to charger my battery as well.Every day I was thinking about this project and After 1 to 2 days when i was cleaning my lab, I saw an old mobile charger and there i get an idea to make this one as my balance charger .

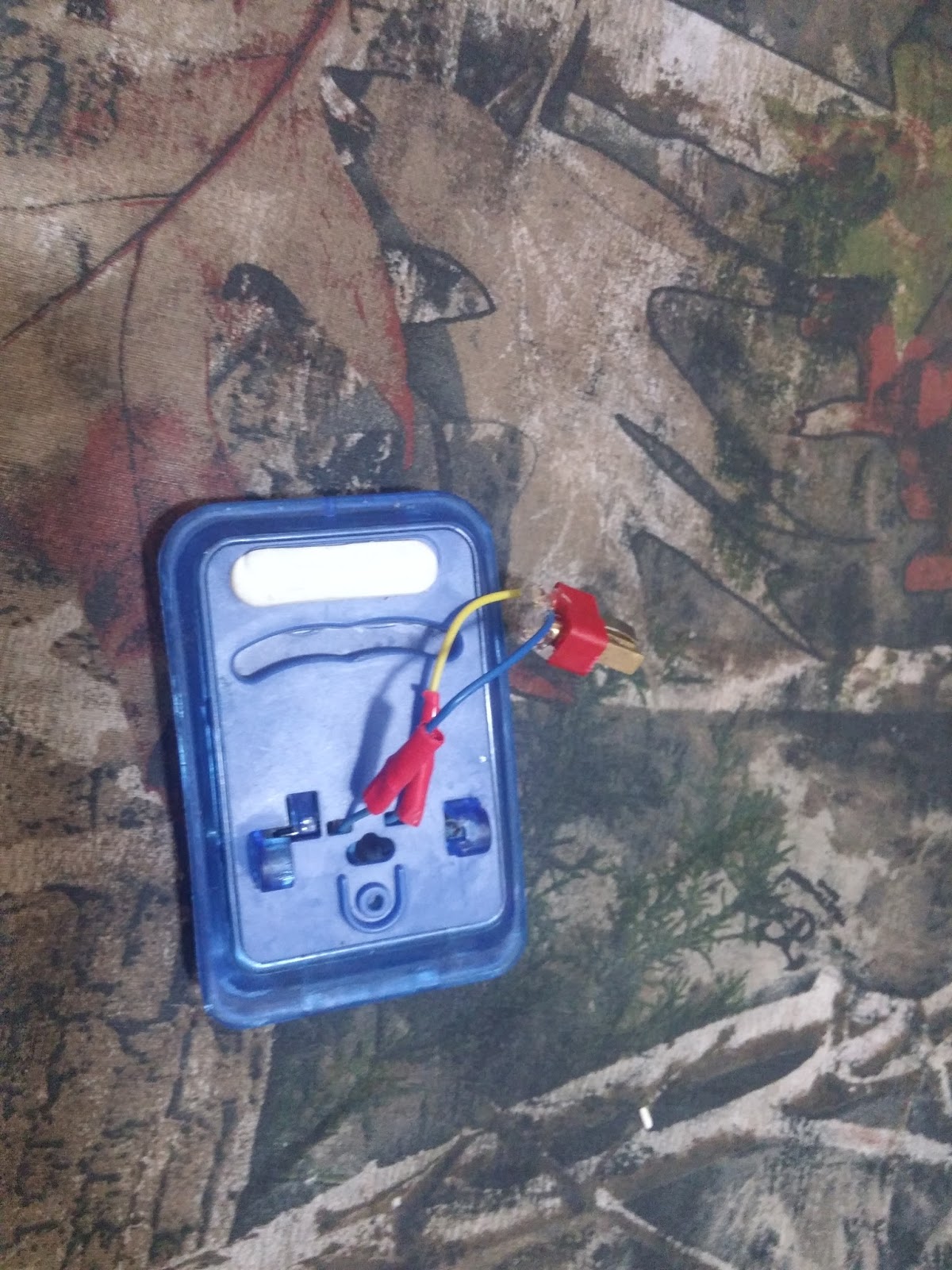

First i remove the upper case of charger. Then i remove the charging pins and then i connect the T-Plug where the charging pins where connected make sure to connect the right terminals.
This idea was really cool because i donot have to do all work all the things were already installed in it i did not need tranformer, IC for that and it also got some feature like indication while battery is charging and when the battery is fully charge.
It was really easy and i did not spend single Penney for this project.
It charge my battery although charging is not so fast but it works.
Tell me about your balance charger that you are using which one is the best for lipo batteries and
Share your's ideas in comments that will help is us.
Tell me about your balance charger that you are using which one is the best for lipo batteries and
Share your's ideas in comments that will help is us.
